Shelves for Recycling 資源回收分類架

Made By: Steve Wang, Lucas Tam, Brendan Hsu, Ron Liu

Client: The Class

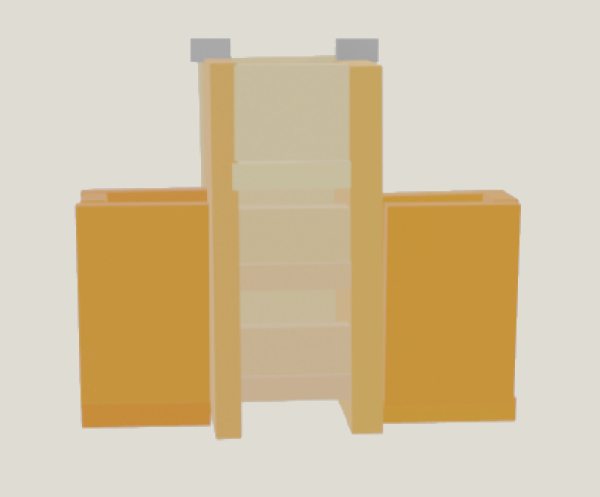

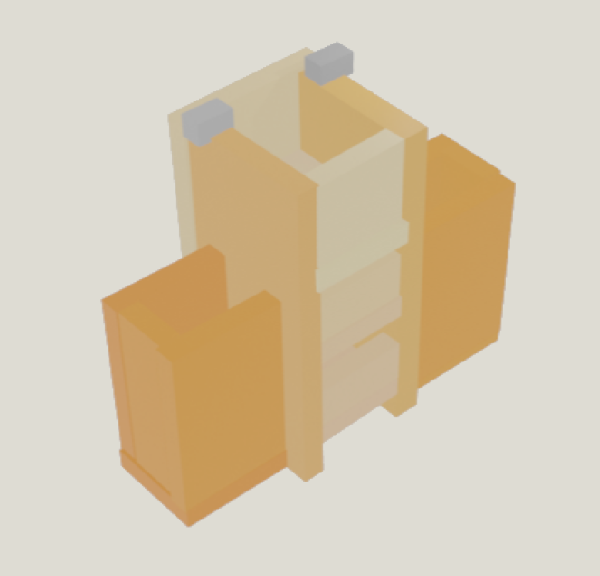

1. The top bin is for food waste.
2. The second bin is for colored paper.
3. The third bin is for paper.
4. The left one is for cardboard.
5. The right one is for bottles.
6. For the food waste bin we will put the plastic bag between the hooks.
7. We are going to screw eyelet screws in the wood and connect carabiners to them.
8. Then, we will attach the bags to the carabiners.

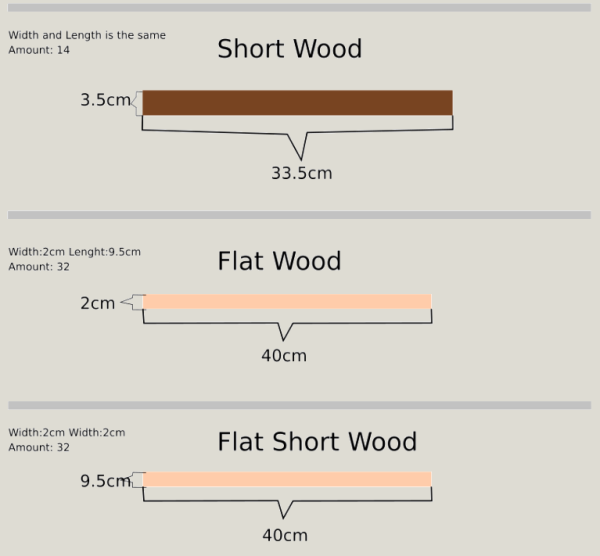

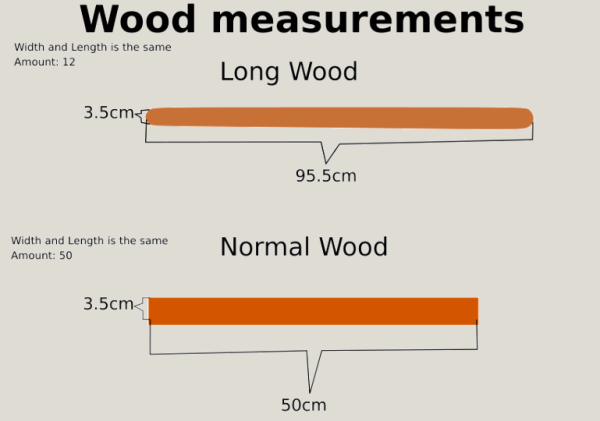

1. Long Wood (12)
2. Flat Wood (32)
3. Normal wood (50)
4. Short wood (14)
5. Glue
6. 5cm Screws (256)
7. Screwdrivers
8. Eyelets with 1.5cm circle diameter (20)
9. Carabiner (4)

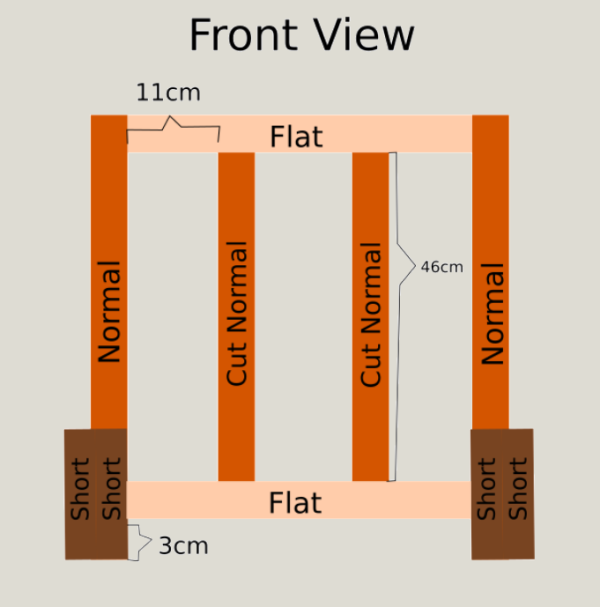

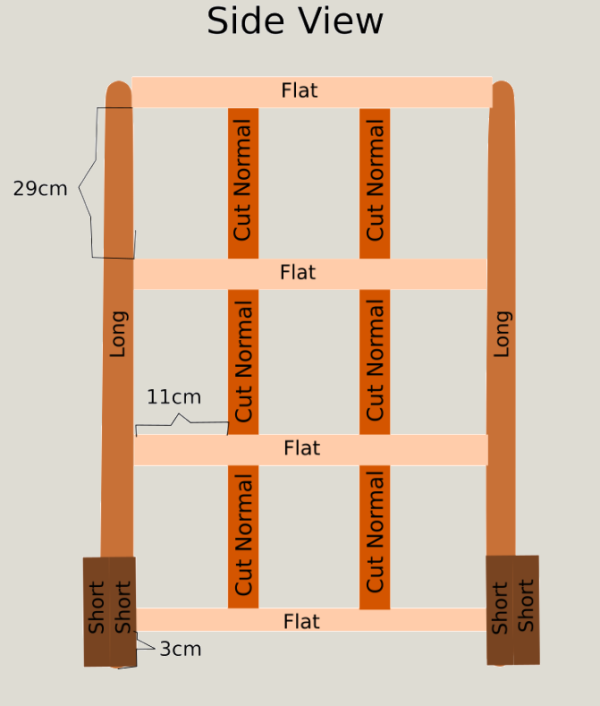

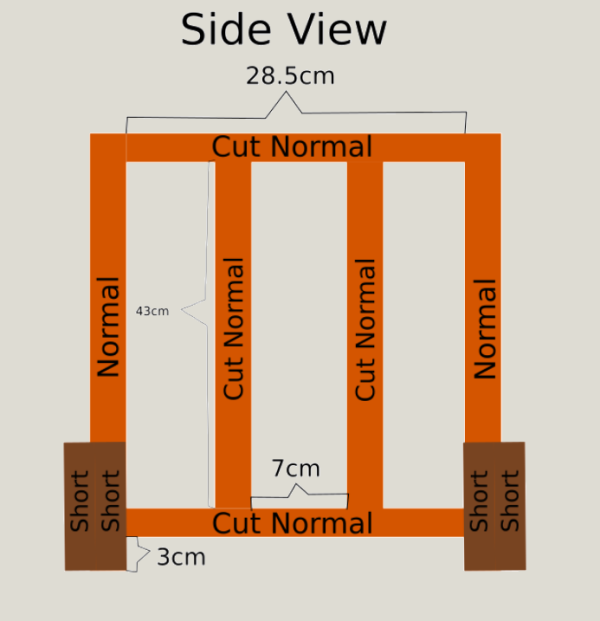

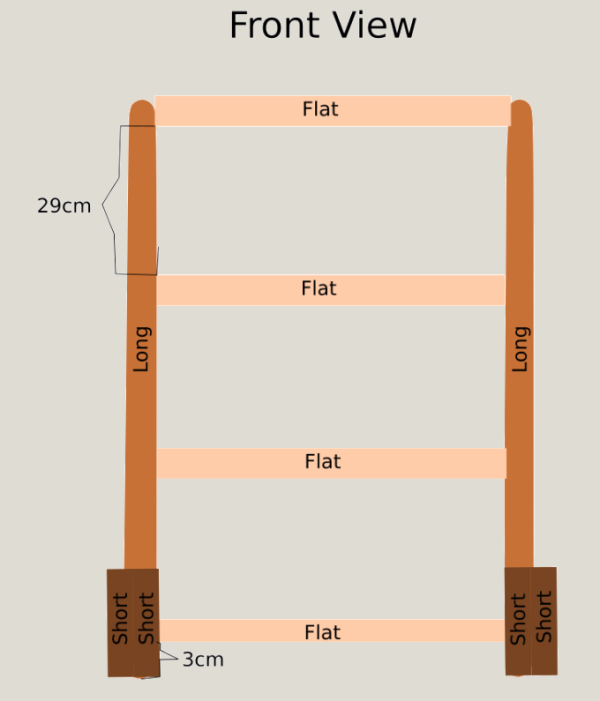

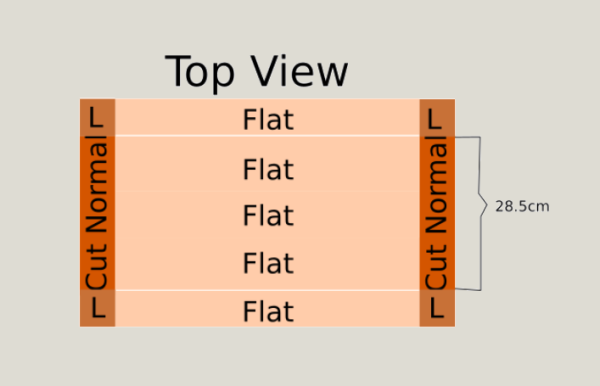

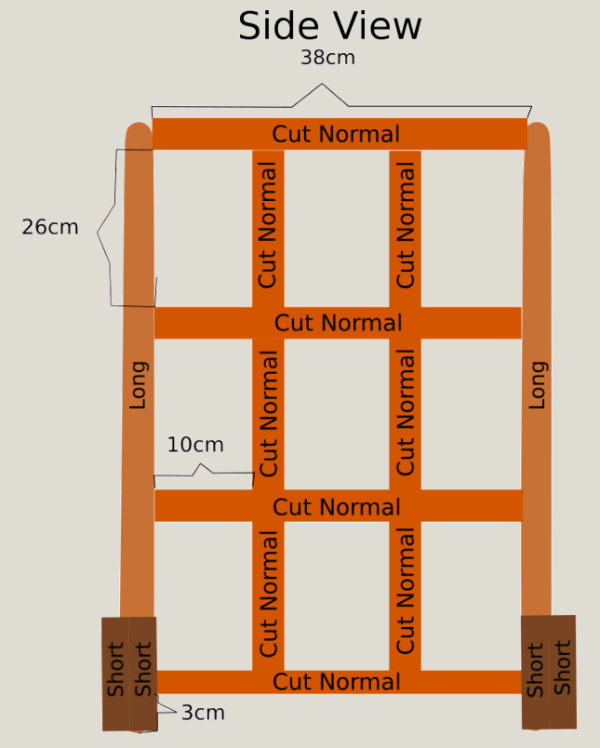

We will use the long wood sticks to make the bin stand. The normal wood sticks will be used to cover the top of where we will put all the food waste, colored paper, and white paper. It will also be used for the outer side of the bin. Some short sticks will help the bin become more stable when it is standing. Some short sticks and normal sticks will build 2 long boxes on the outside for the cardboard and bottles. The wood planks will be in the front of where the colored paper and white paper will be so the paper doesn’t fly away. Most of the materials will be the surface of the bin. Then we glue and screw the wood together.
