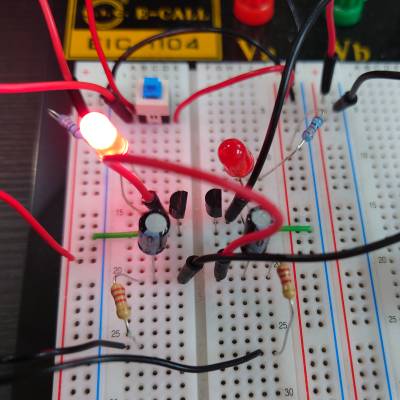

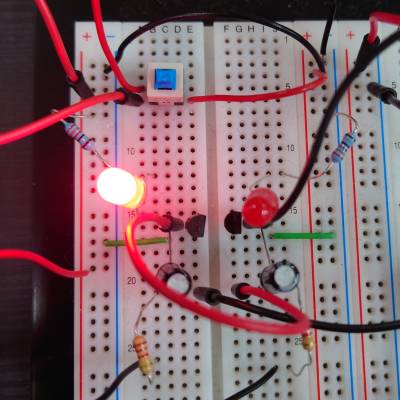

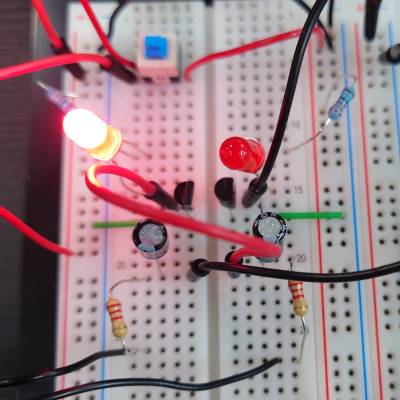

astable multivibrator with potentiometer to control oscillation speed

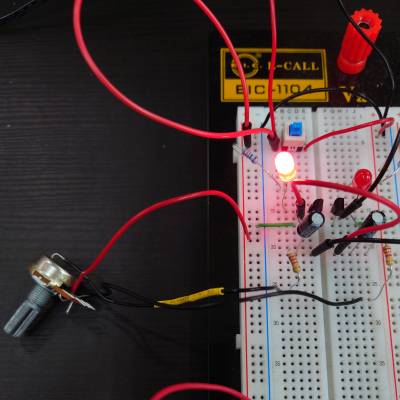

Uses a B20K potentiometer and 2200 ohm resistors at the back (2k ohm resistors would be almost the same). Notice that both 2200K ohm resistors are connected to the same terminal on the potentiometer, which allows it to control the speed of both lights.
